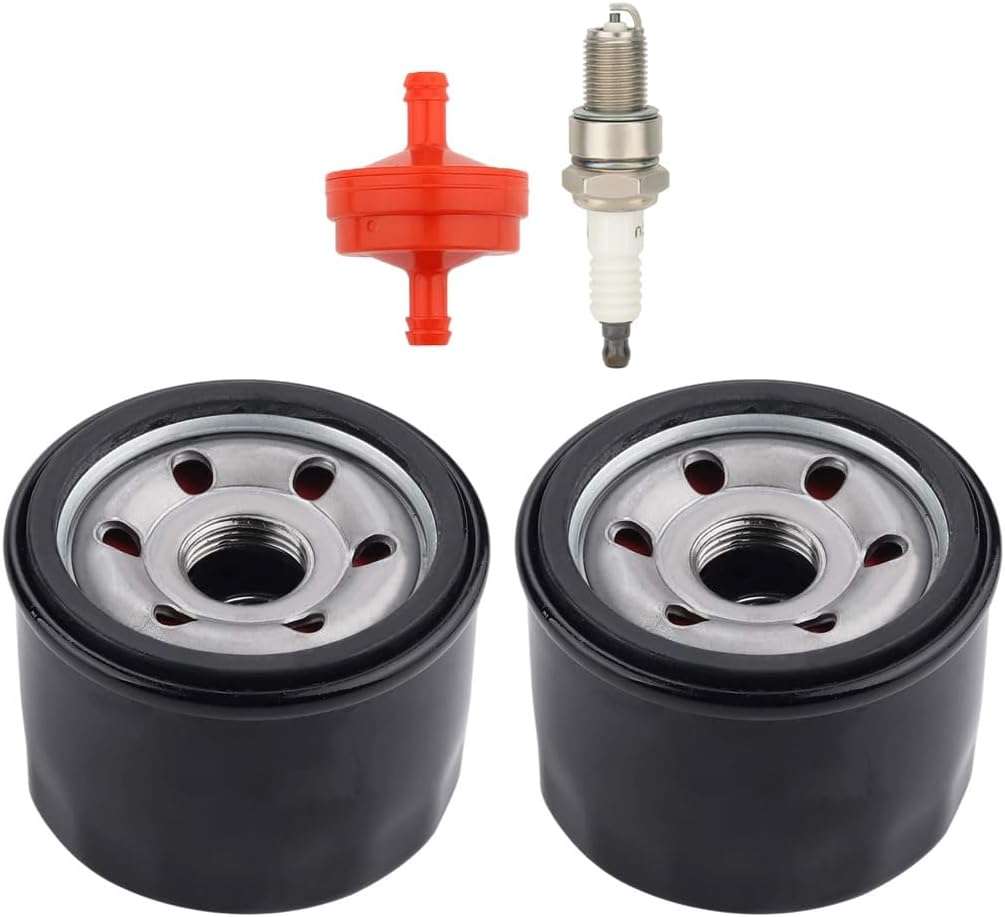

751-12690 Oil Filter Cross-Reference Guide

(Fits Cub Cadet / Troy-Bilt / Craftsman & other Powermore 4P-series engines)

1. Why Know Your Cross-References?

North-American and EU distributors often face OEM back-orders. Keeping an approved list of alternates for 751-12690 lets you:

• swap in-stock brands instantly and keep crews mowing;
• slim inventory by carrying one “footprint” that covers several SKUs;
• negotiate price—filters with identical core specs but different labels can vary 20-30 %.

2. Core Specifications

Parameter	Value	Source
Thread	3/4-16 UNF	(Master Landscape Supply)
Outside Ø	2-5/8 in ≈ 66 mm	(Master Landscape Supply)
Height	2-1/8 in ≈ 54 mm	(Master Landscape Supply)
Bypass valve	8 psi (≈0.55 bar)	(finditparts.com)

Tip: As long as thread, gasket Ø and height match, a bypass setting within ±2 psi will interchange safely.

3. Typical Equipment

• Cub Cadet XT1/XT2, CC30 riders (382-679 cc Powermore)
• Troy-Bilt TB30/TB42/TBWC33XP riders
• Craftsman LT1500, T1000, R1000 series
• MTD 4P engines 4P90HU ⁄ 4P90JHA ⁄ 4P90JU, etc. (Master Landscape Supply)

4. Cross-Reference Chart

Brand	Part #	Main Sales Channel	Reference
MTD / OEM	951-12690, 751-11501	Factory original	(The Home Depot)
MaxPower	334299	Tractor Supply, Home Depot	(Tractor Supply Co.)
HIFI-FILTER	SO 10144	EU aftermarket	(HIFI FILTER – E-Catalog)
Briggs & Stratton	492932 / 492932S	Common 12-18 HP horizontal engines	(亚马逊)
Fram	PH4967	Auto-parts retail	(DuroMax Power Equipment)
Baldwin	B7165	Heavy-duty & turf OEMs	(outdoorking.com.au)
WIX / NAPA	57035 / 1358	Long-life cellulose media	(DuroMax Power Equipment)

Installation note: gasket thickness varies slightly by brand—lightly oil the seal and hand-tighten ¾ turn after contact.

5. Stocking Advice from Yeahparts

1. Preferred swap: MaxPower 334299 or Yeahparts custom label—identical 20 µm media, ~15 % cheaper in case lots.
2. Dual-source strategy: keep OEM for warranty work; deploy Fram or Baldwin when lead-times spike.
3. Bundle & upsell: create a spring tune-up kit (oil filter + spark-plug + fuel filter). Dealers report 30 % higher ticket value.

6. Service Intervals

Usage	Change Oil + Filter	Torque
Homeowner	Every 50 hrs or each season	12-15 Nm
Commercial landscaper	Every 100 hrs or bi-weekly	12-15 Nm

Discard the old gasket, wipe the base plate clean, and pre-fill the new filter to ⅔ with fresh SAE 30/10W-30 where layout allows.

7. Wrap-Up

Having a reliable cross-reference list for 751-12690 turns supply-chain hiccups into sales opportunities. Need pallet pricing or private-label packaging? Visit Yeahparts.com or ping Echo directly for a 24-hour quote. Stay tuned—next post we’ll dissect the legendary AM125424 / 492932 filter upgrade path.
